Gilder Square Grids
Gilder grids are precision-manufactured supports for TEM and SEM applications, designed to provide high-quality sample stability and imaging. Produced using advanced photochemical etching techniques, these grids feature well-defined patterns and consistent thickness to ensure minimal distortion during electron microscopy analysis.
Made from materials such as copper, nickel, and gold, Gilder grids are available in various mesh sizes and configurations to suit diverse research needs. Their high manufacturing standards make them ideal for applications requiring superior reproducibility and structural integrity.
| Technology Date | Rim Specifications | ||||
| Pitch(µm) | Bar(µm) | Hole Width(µm) | Centre Mark | Rim Mark | |

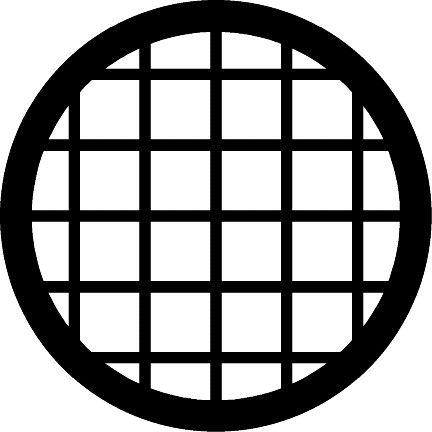

| 50 mesh | 500 | 80 | 420 | None | No |
| 75 mesh | 340 | 55 | 285 | Asymmetrical | No |

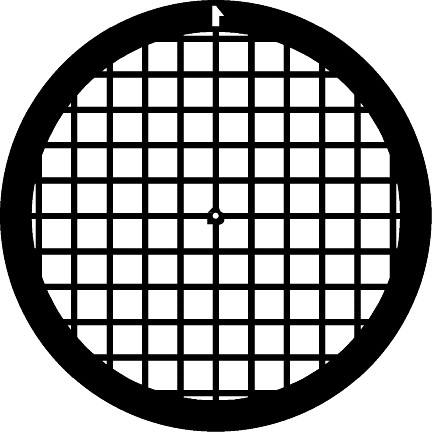

| 100 mesh | 250 | 45 | 205 | Asymmetrical | Yes |
| 150 mesh | 165 | 40 | 125 | Asymmetrical | Yes |

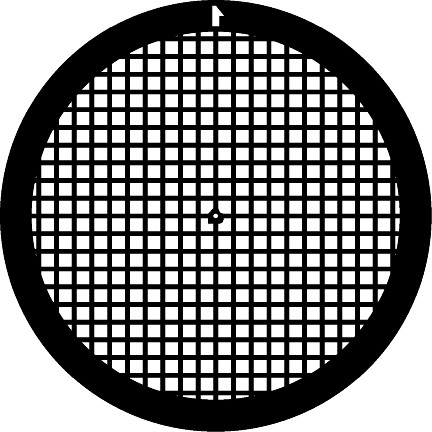

| 200 mesh | 125 | 35 | 90 | Asymmetrical | Yes |

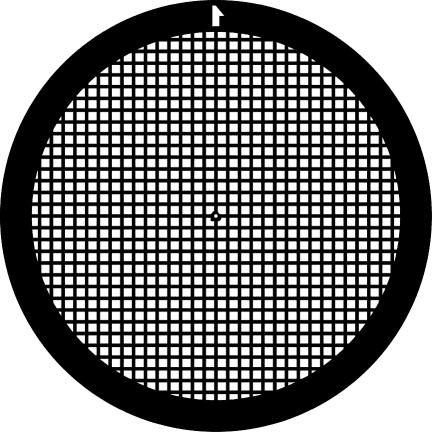

| 300 mesh | 83 | 25 | 58 | Asymmetrical | Yes |

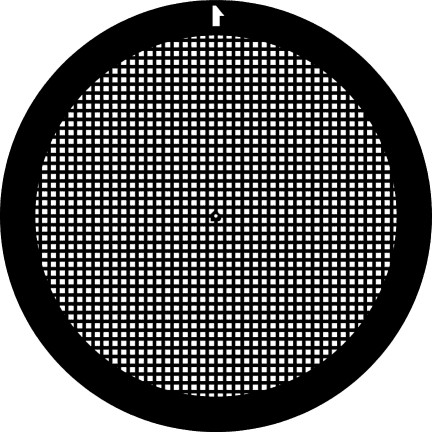

| 400 mesh | 62 | 25 | 37 | Asymmetrical | Yes |

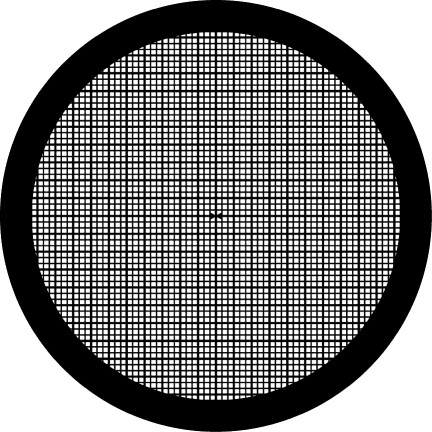

| 600 mesh | 42 | 16-10 | 30 | Asymmetrical | No |
3.05 mm diameter
Material: Copper, Nickle,Gold Ready-to-Use
Packaging: Standard Cu, Ni or Cu/Pd, 100 grids/vial
Au, 50 grids/vial.
Thickness of Nickel grids is typically 35µm ±5µm.
Thickness of Mo grids is typically 25µm - 50µm.
Gilder Square Grids (Copper)
| Prod# |
|---|
| AG50 |
| Description |
|---|
| Gilder Grids, 50 mesh, Copper |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $32.00 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG75 |
| Description |
|---|
| Gilder Grids, 75 mesh, Copper |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $32.00 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG100 |
| Description |
|---|
| Gilder Grids, 100 mesh, Copper |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $32.00 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG150 |
| Description |
|---|
| Gilder Grids, 150 mesh, Copper |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $34.80 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG200 |
| Description |
|---|
| Gilder Grids, 200 mesh, Copper |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $34.80 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG300 |
| Description |
|---|
| Gilder Grids, 300 mesh, Copper |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $34.80 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG400 |
| Description |
|---|
| Gilder Grids, 400 mesh, Copper |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $37.50 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG600TT |
| Description |
|---|
| Gilder Thick-Thin Bar Grids, 600 mesh, Copper |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $59.80 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# | Description | Unit | Price | Order/Quote |
|---|---|---|---|---|
| AG50 | Gilder Grids, 50 mesh, Copper | 100/vial | $32.00 | Qty: Add to cart |
| AG75 | Gilder Grids, 75 mesh, Copper | 100/vial | $32.00 | Qty: Add to cart |
| AG100 | Gilder Grids, 100 mesh, Copper | 100/vial | $32.00 | Qty: Add to cart |
| AG150 | Gilder Grids, 150 mesh, Copper | 100/vial | $34.80 | Qty: Add to cart |
| AG200 | Gilder Grids, 200 mesh, Copper | 100/vial | $34.80 | Qty: Add to cart |
| AG300 | Gilder Grids, 300 mesh, Copper | 100/vial | $34.80 | Qty: Add to cart |
| AG400 | Gilder Grids, 400 mesh, Copper | 100/vial | $37.50 | Qty: Add to cart |
| AG600TT | Gilder Thick-Thin Bar Grids, 600 mesh, Copper | 100/vial | $59.80 | Qty: Add to cart |
Gilder Square Grids (Nickle)
| Prod# |
|---|
| AG50N |
| Description |
|---|
| Gilder Grids, 50 mesh, Ni |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $44.70 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG75N |
| Description |
|---|
| Gilder Grids, 75 mesh, Ni |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $44.70 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG100N |
| Description |
|---|
| Gilder Grids, 100 mesh, Ni |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $44.70 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG150N |
| Description |
|---|
| Gilder Grids, 150 mesh, Ni |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $48.50 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG200N |
| Description |
|---|
| Gilder Grids, 200 mesh, Ni |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $48.50 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG300N |
| Description |
|---|
| Gilder Grids, 300 mesh, Ni |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $48.50 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG400N |
| Description |
|---|
| Gilder Grids, 400 mesh, Ni |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $48.90 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG600TTN |
| Description |
|---|
| Gilder Thick-Thin Bar Grids, 600 mesh, Ni |
| Unit |
|---|
| 100/vial |
| Price |
|---|
| $68.50 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# | Description | Unit | Price | Order/Quote |
|---|---|---|---|---|
| AG50N | Gilder Grids, 50 mesh, Ni | 100/vial | $44.70 | Qty: Add to cart |
| AG75N | Gilder Grids, 75 mesh, Ni | 100/vial | $44.70 | Qty: Add to cart |
| AG100N | Gilder Grids, 100 mesh, Ni | 100/vial | $44.70 | Qty: Add to cart |
| AG150N | Gilder Grids, 150 mesh, Ni | 100/vial | $48.50 | Qty: Add to cart |
| AG200N | Gilder Grids, 200 mesh, Ni | 100/vial | $48.50 | Qty: Add to cart |
| AG300N | Gilder Grids, 300 mesh, Ni | 100/vial | $48.50 | Qty: Add to cart |
| AG400N | Gilder Grids, 400 mesh, Ni | 100/vial | $48.90 | Qty: Add to cart |
| AG600TTN | Gilder Thick-Thin Bar Grids, 600 mesh, Ni | 100/vial | $68.50 | Qty: Add to cart |
Gilder Square Grids (Gold)
| Prod# |
|---|
| AG50A |
| Description |
|---|
| Gilder Grids, 50 mesh, Au |
| Unit |
|---|
| 50/vial |
| Price |
|---|
| $82.50 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG75A |
| Description |
|---|
| Gilder Grids, 75 mesh, Au |
| Unit |
|---|
| 50/vial |
| Price |
|---|
| $82.50 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG100A |
| Description |
|---|
| Gilder Grids, 100 mesh, Au |
| Unit |
|---|
| 50/vial |
| Price |
|---|
| $82.50 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG150A |
| Description |
|---|
| Gilder Grids, 150 mesh, Au |
| Unit |
|---|
| 50/vial |
| Price |
|---|
| $87.00 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG200A |
| Description |
|---|
| Gilder Grids, 200 mesh, Au |
| Unit |
|---|
| 50/vial |
| Price |
|---|
| $87.00 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG300A |
| Description |
|---|
| Gilder Grids, 300 mesh, Au |
| Unit |
|---|
| 50/vial |
| Price |
|---|
| $87.00 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG400A |
| Description |
|---|
| Gilder Grids, 400 mesh, Au |
| Unit |
|---|
| 50/vial |
| Price |
|---|
| $92.20 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AG600TTA |
| Description |
|---|
| Gilder Thick-Thin Bar Grids, 600 mesh, Au |
| Unit |
|---|
| 50/vial |
| Price |
|---|
| $95.40 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# | Description | Unit | Price | Order/Quote |
|---|---|---|---|---|
| AG50A | Gilder Grids, 50 mesh, Au | 50/vial | $82.50 | Qty: Add to cart |
| AG75A | Gilder Grids, 75 mesh, Au | 50/vial | $82.50 | Qty: Add to cart |
| AG100A | Gilder Grids, 100 mesh, Au | 50/vial | $82.50 | Qty: Add to cart |
| AG150A | Gilder Grids, 150 mesh, Au | 50/vial | $87.00 | Qty: Add to cart |
| AG200A | Gilder Grids, 200 mesh, Au | 50/vial | $87.00 | Qty: Add to cart |
| AG300A | Gilder Grids, 300 mesh, Au | 50/vial | $87.00 | Qty: Add to cart |
| AG400A | Gilder Grids, 400 mesh, Au | 50/vial | $92.20 | Qty: Add to cart |
| AG600TTA | Gilder Thick-Thin Bar Grids, 600 mesh, Au | 50/vial | $95.40 | Qty: Add to cart |
