Omniprobe® Lift-Out Grids
Omniprobe® Lift-Out Grids for in-situ lift-out, are specifically designed to accept the TEM lamellas milled out by FIB or SEM/FIB systems.
Available in standard Cu with 3, 4 and 5 posts and in Mo with 3 posts.
All Lift-Out Grids have multiple indexed mounting positions for easy identification and positioning in the TEM.
A key feature of these grids is that they have a sharp edge at the “downset”. This sharp edge gives easy access and helps show the user exactly where to place the lamella when mounting to the side of a post.
Diameter : 3mm
Thickness (nominal) : 30 μm (25-30µm)
Post Downset (Nominal) : 10 μm
Omniprobe® Lift-Out Grids.
| Prod# |
|---|
| AO0101 |
| Description |
|---|

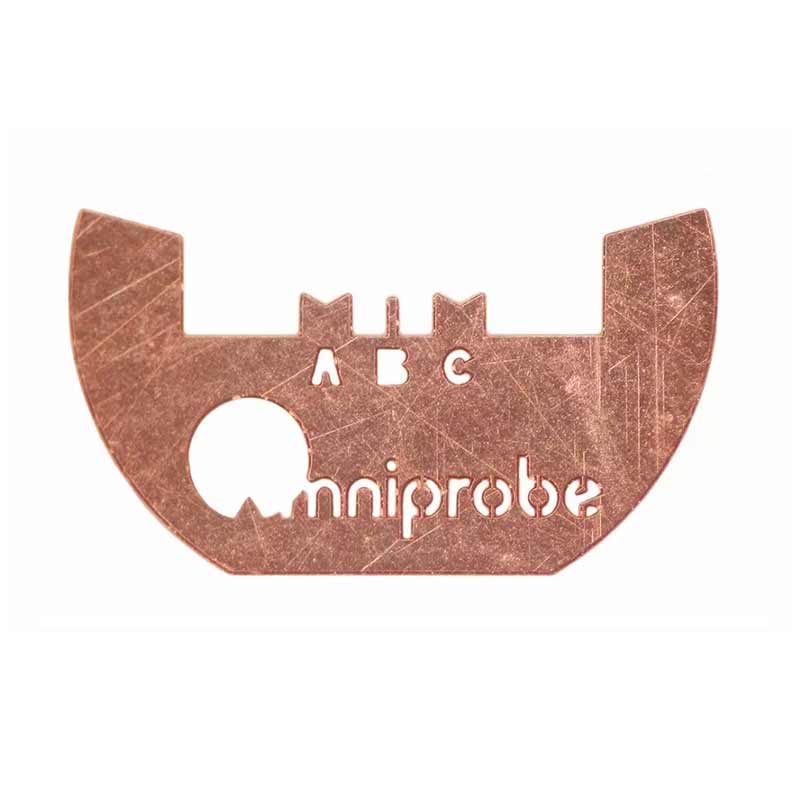

| 3 Post Omniprobe® Copper Grids |
| Unit |
|---|
| 100/box |
| Price |
|---|
| $283.00 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AO0201 |
| Description |
|---|

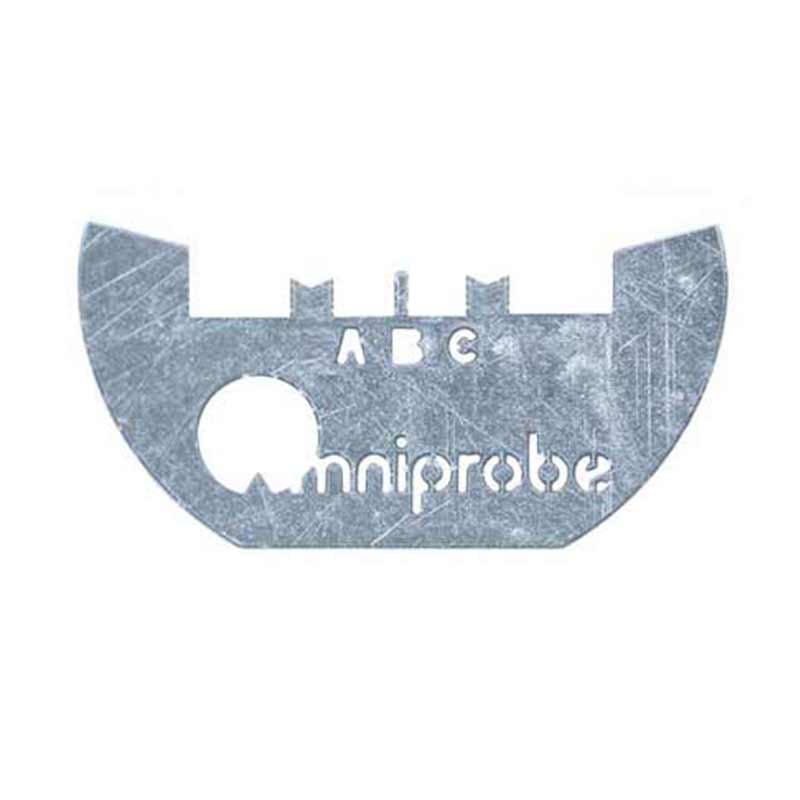

| 3 Post Omniprobe® Moly Lift-Out Grids |
| Unit |
|---|
| 25/box |
| Price |
|---|
| $365.00 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AO0501 |
| Description |
|---|

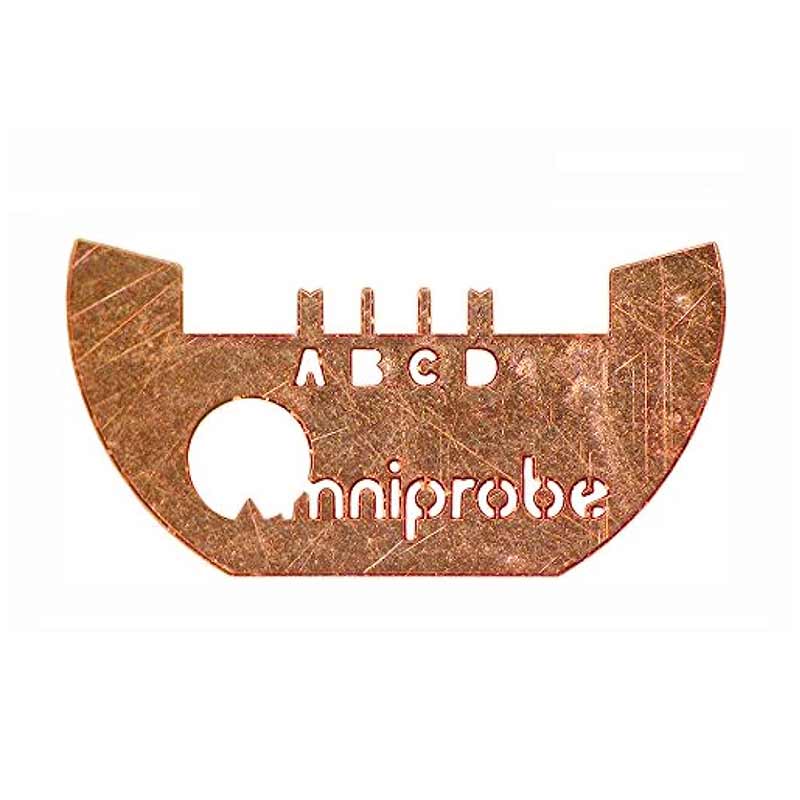

| 4 Post Omniprobe® Copper Grids |
| Unit |
|---|
| 100/box |
| Price |
|---|
| $283.00 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# |
|---|
| AO0106 |
| Description |
|---|

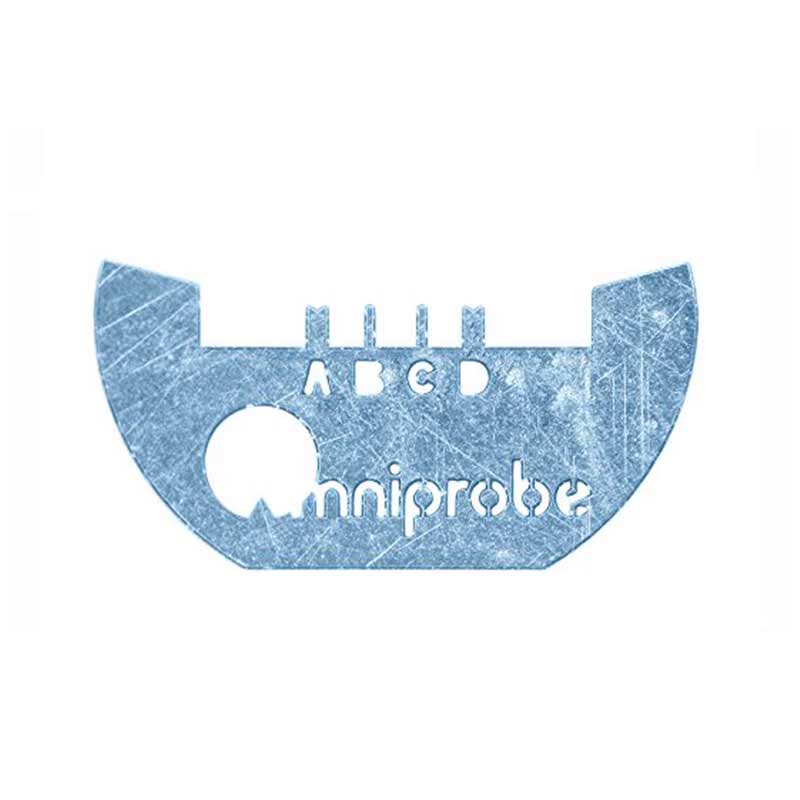

| 4 Post Omniprobe® Moly Lift-Out Grids |
| Unit |
|---|
| 25/box |
| Price |
|---|
| $365.00 |
| Order/Quote |
|---|
| Qty: Add to cart |
| Prod# | Description | Unit | Price | Order/Quote |
|---|---|---|---|---|
| AO0101 | 3 Post Omniprobe® Copper Grids | 100/box | $283.00 | Qty: Add to cart |
| AO0201 | 3 Post Omniprobe® Moly Lift-Out Grids | 25/box | $365.00 | Qty: Add to cart |
| AO0501 | 4 Post Omniprobe® Copper Grids | 100/box | $283.00 | Qty: Add to cart |
| AO0106 | 4 Post Omniprobe® Moly Lift-Out Grids | 25/box | $365.00 | Qty: Add to cart |
